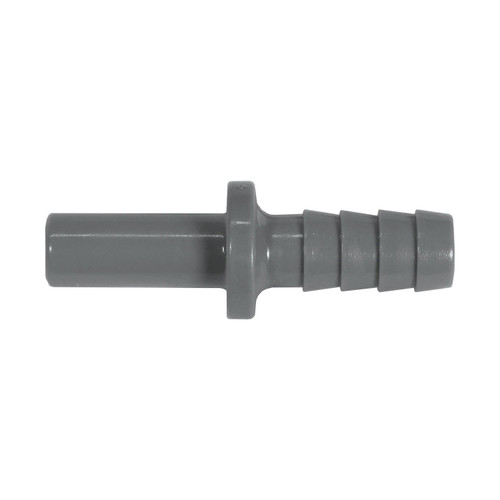

The Straight Stem-Barb fitting from John Guest provides a flush, secure connection between 5/16” O.D. tubing and flexible 5/16” I.D. hose. One side of the fitting can be used as a push-fit connector, while a hose barb on the other side allows for an easy, secure connection.
Constructed of tough gray acetal (which is FDA approved for food contact) and equipped with a food-grade nitrile O-ring, this fitting can be used on beverage dispense systems, potable water lines, and other food applications. It is also usable with air and inert gases such as CO2 and nitrogen beverage lines.
Features and Benefits
- For use with plastic or copper O.D. size tubing
- Gray acetal body with food-grade nitrile O-ring
- Quick push-fit installation with easy disconnection
- Suitable for potable liquids and pure water applications
- NSF 51 and NSF 61 listed
- Manufactured from lead-free materials
- Compatible with air, pneumatic, and vacuum systems
- Suitable for inert gases, including CO2 and nitrogen beverage lines
Working Pressure and Temperature
Sizes 5/32” — 5/16”
- Max. 230 psi at 68°F
- Max. 150 psi at 150°F
Sizes 3/8” — 1/2”
- Max. 150 psi at 68°F
- Max. 100 psi at 150°F
