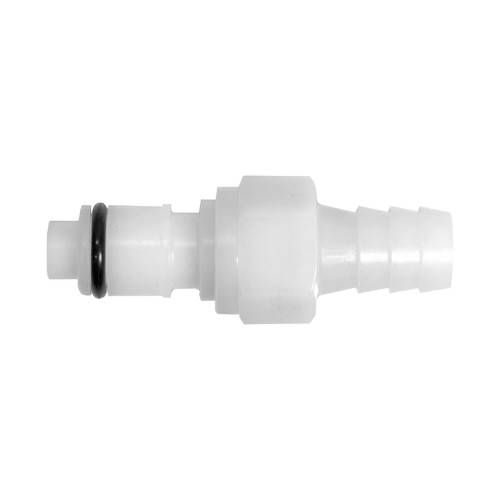

The CPC 3/8'' quick-disconnect fittings are ideal for reliable medium flow installations. With a 3/8'' tube ID, its straight through design reduces flow restriction and contributes to steady system operation. Made of acetal with Buna-N seals, it is rated to handle compressed air and most fluids and chemicals.
Quick, safe connection plug specifically designed for fast and safe coupling and can be rapidly connected hand-tight to CPC couplings and adapted for fast system changes without tools. It is light, functional and portable, which makes it perfect for use in a beverage dispensing system, pneumatic and fluid transfer applications.
Features and Benefits:
- 3/8″ tube ID for medium-flow applications
- Straight-through design for improved flow efficiency
- Durable acetal construction
- Buna-N seal for dependable sealing performance
- Quick connect and disconnect operation
- Suitable for compressed air and various fluids
- Compatible with CPC PLC series couplings
Specifications:
| Fitting Material | Acetal |
| O-Ring Material | Buna-N |
| Connection Type | Quick-Disconnect Hose Barb Body, Non-Valved |
| Barb Size (Port 1) | 3/8″ ID |
| Mounting Option | Free Floating |
| Color | Natural White |
| Temperature Range | -40°F to 180°F (-40°C to 82°C) |
| Pressure Range | Vacuum to 120 psi (8.3 bar) |
| Body Type | Insert |
